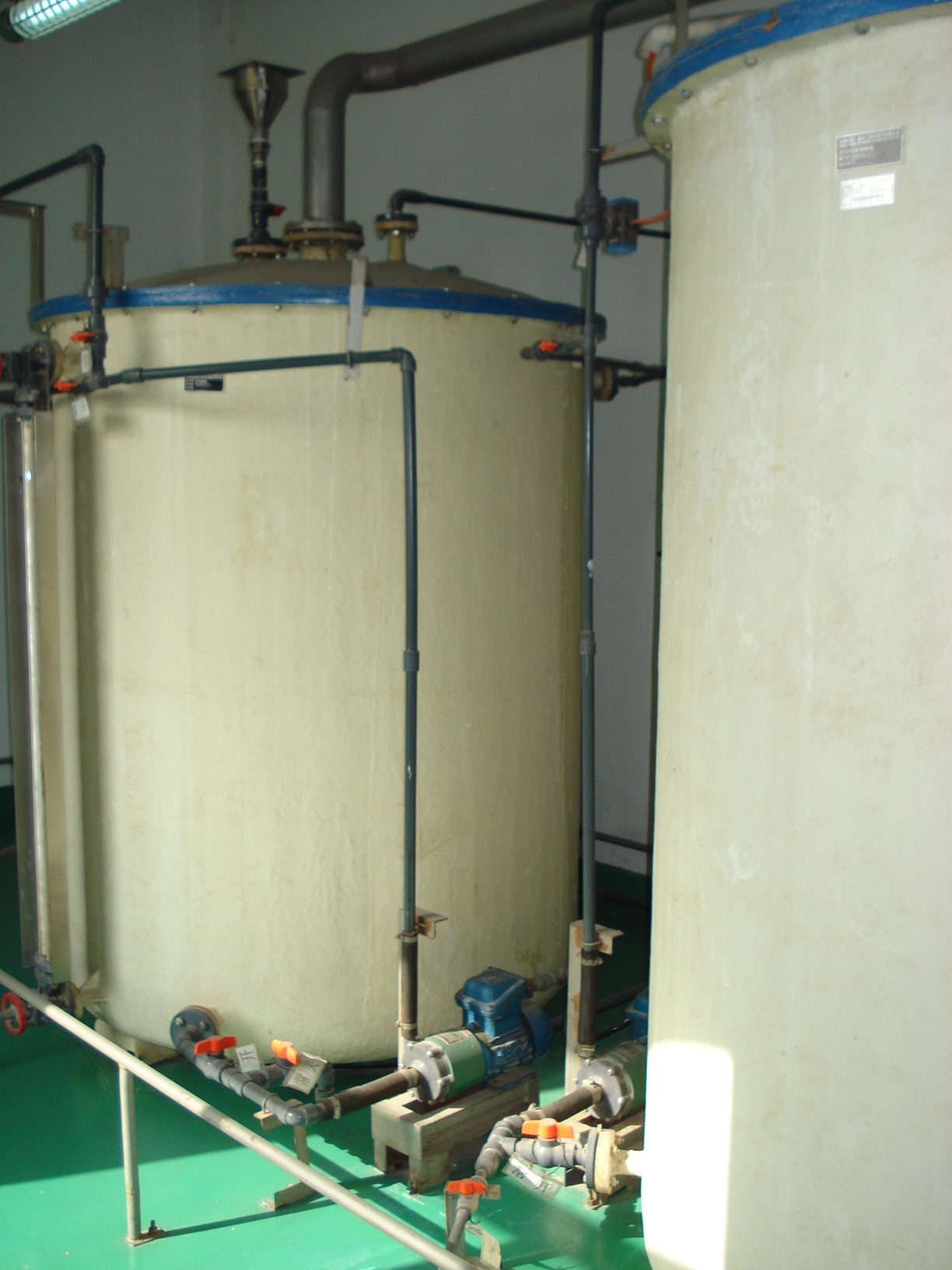

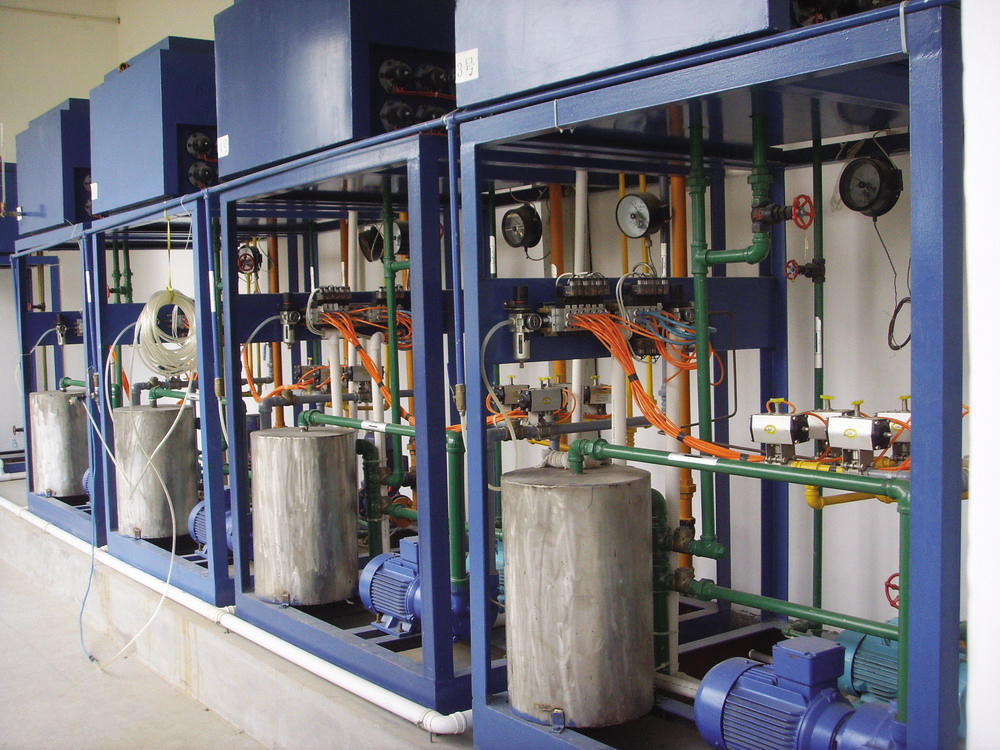

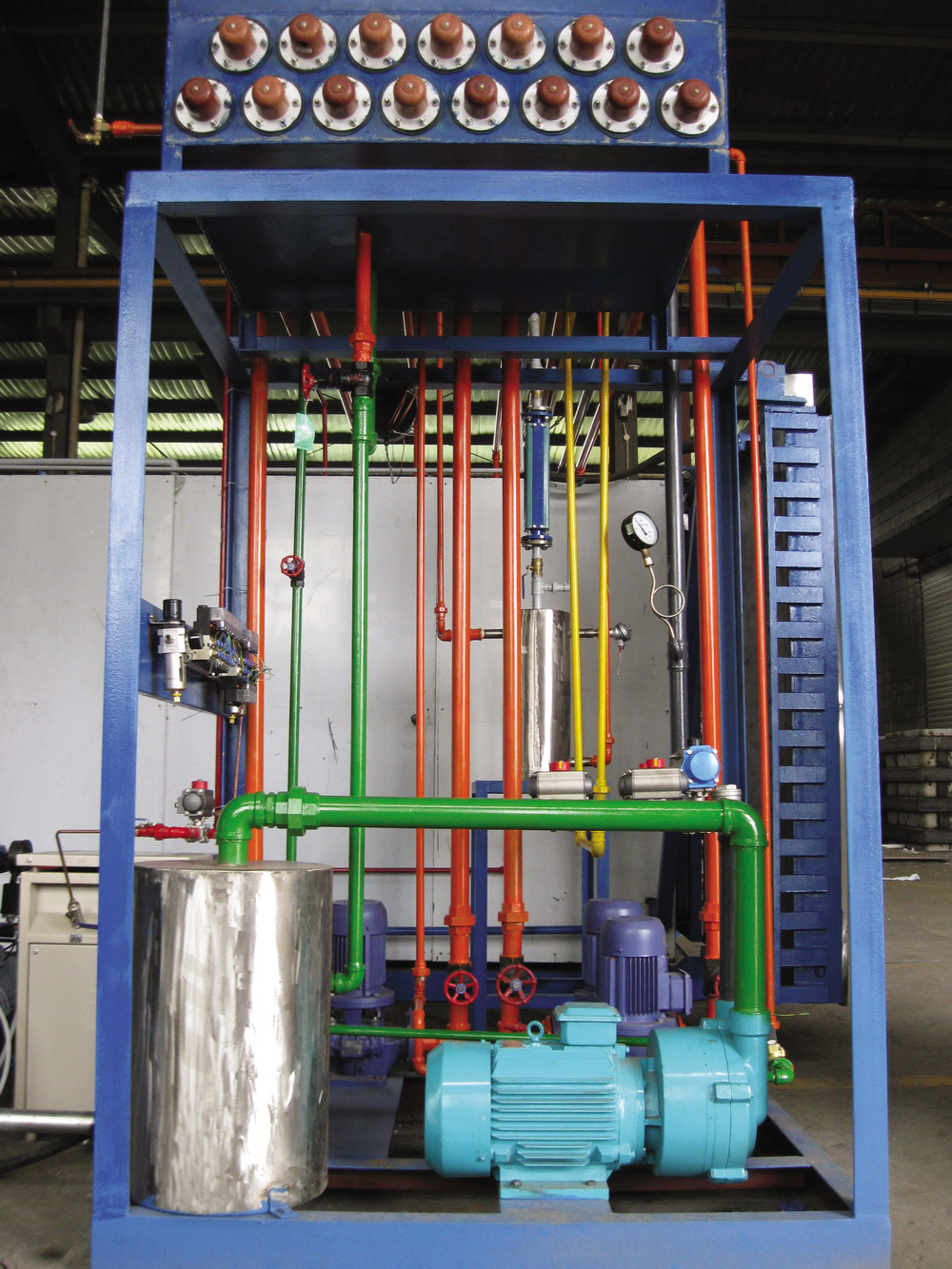

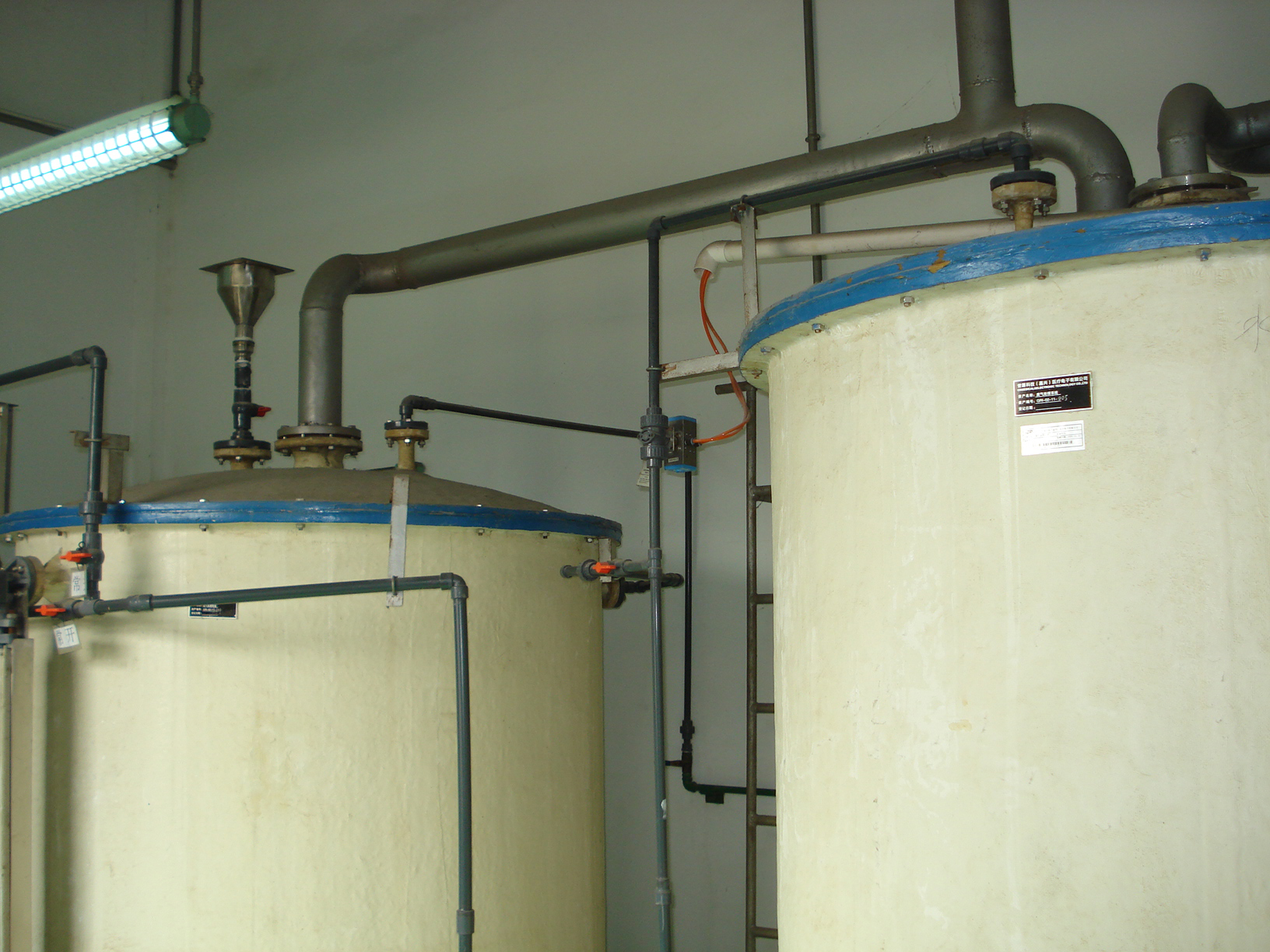

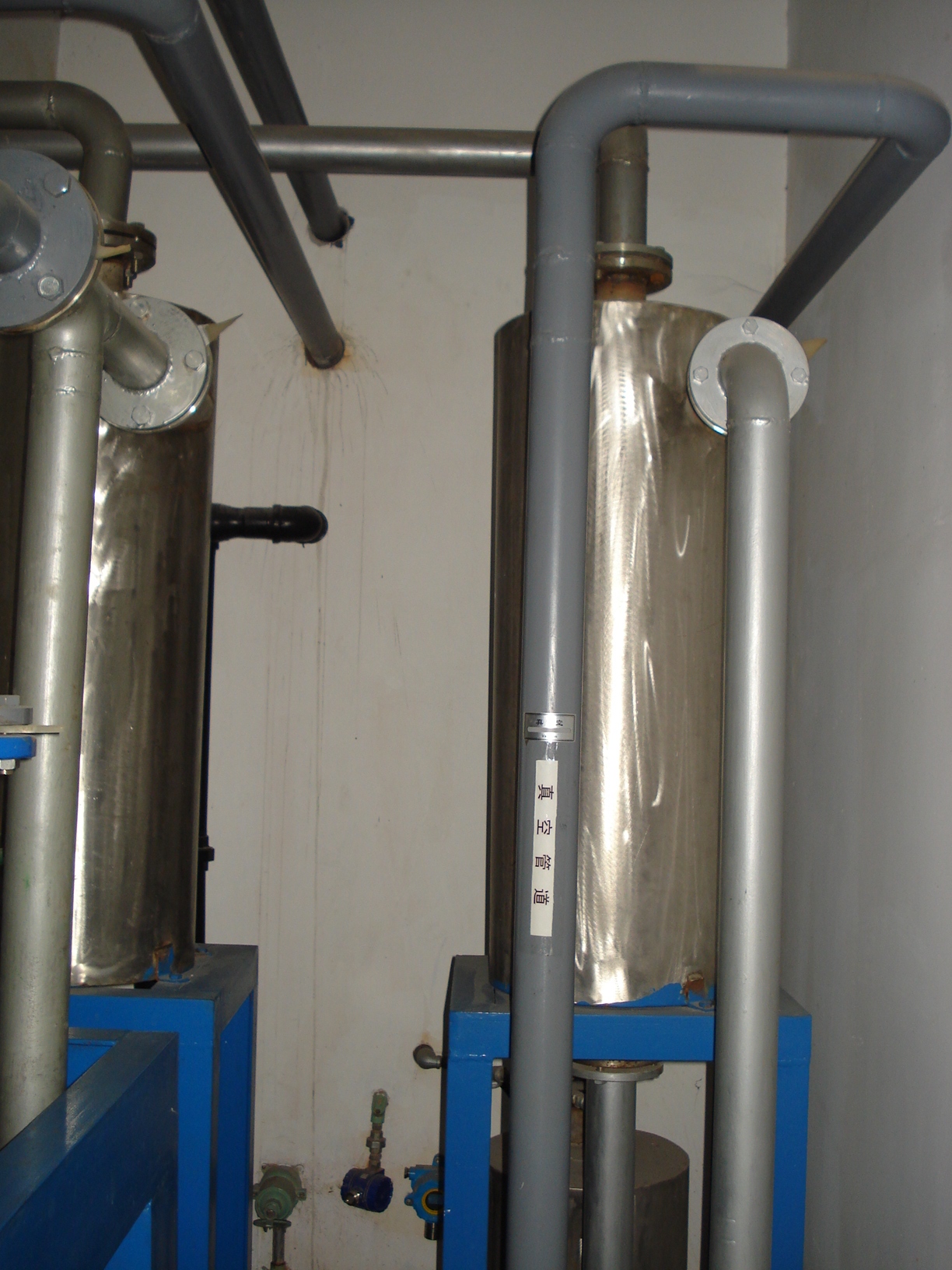

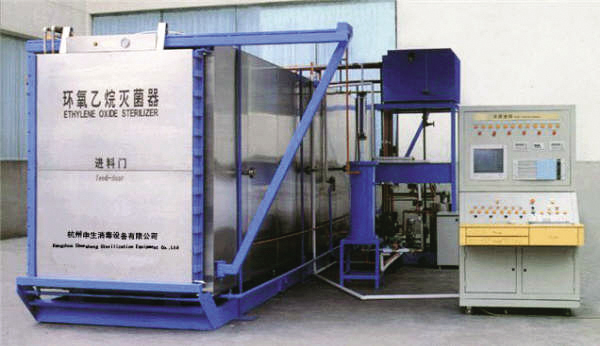

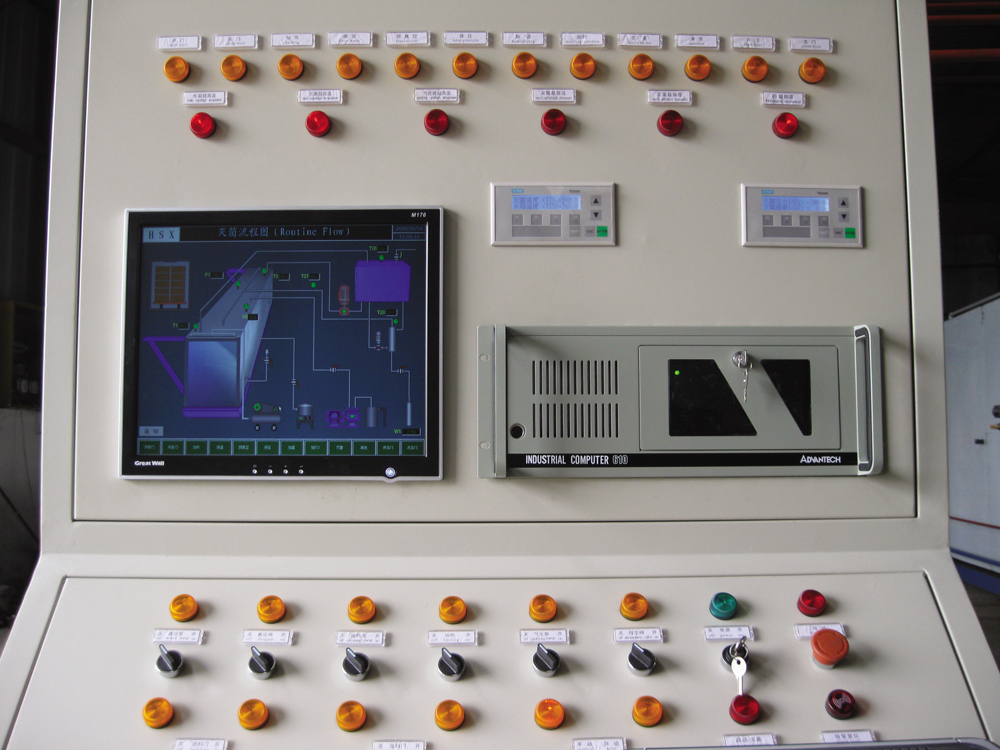

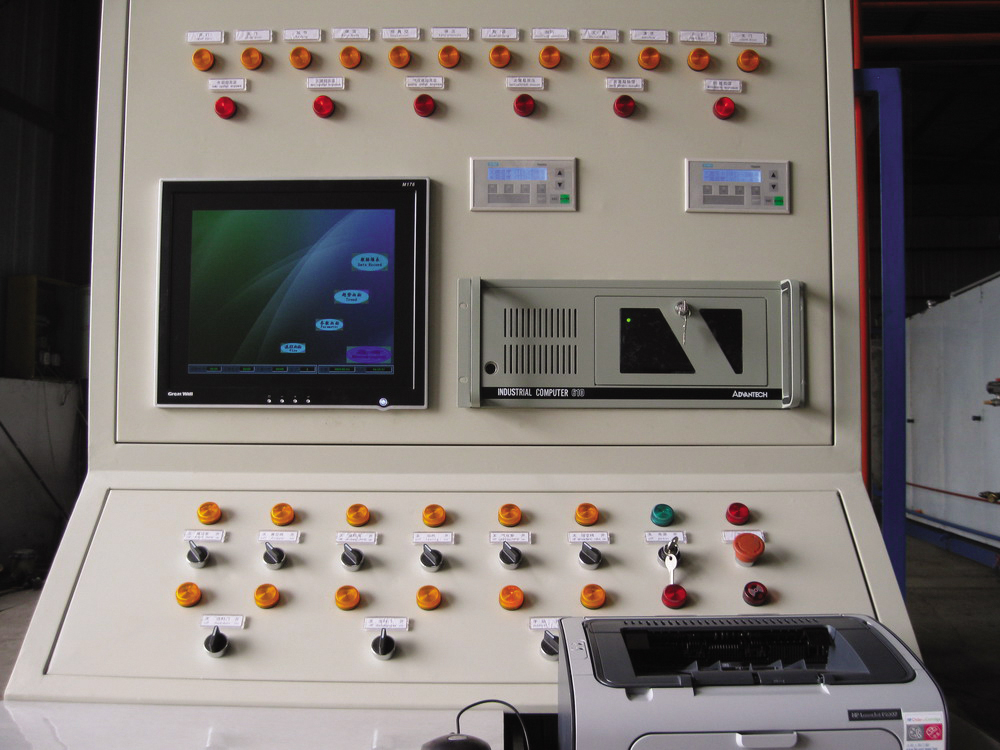

Main Facility ETO Sterilizer ETO Sterilizer includes Sterilizer Chamber, Control Board, Assistant equipments and machines. Spec. / Volume Inner cabinet （L×W×H）cm 35m3 1160 x 140 x220 25m3 1000×145×170 20m3 900×135×170 15m3 675×135×170 10m3 450×135×170 6m3 280×135×180 3m3 185×100×165 1m3 126×80×105 Except the above types, we can also make the special types as per the client’s request. The biggest one we have made for our Client’s at present is 50m3 · Sterilizing temperature: 20~60â„? PID adjustable · Sterilizing pressure : -85~+80Kpa · Sterilizing humidity : 30~85%RH,adjustable(directly) · EO concentration : 250~1200mg/L · Sterilizing time : 30min~12hours · .Pre-vacuum : -95Kpa · Times of air change : Arbitrary · Ventilation time : Arbitrarily · Max. Electric heating power : 9~60KW · Max. Steam Heating power : 10KW · Sterilizing leakage : â‰?.1Kpa / min · Air supply pressureï¼?/strong>0.6Mpaï½?.8Mpa · Water supply pressureï¼?/strong>0.08Mpaï½?.15Mpa · Power source : 3-phase,4,wire,380V,50HZ It’s specification for 20 CBM Chamber for reference. · Vacuum System (pre-vacuum, cleaning after sterilizing and sealed door release) · Heating and Water Circulation System (Chamber body heating , pre-attemperation and    heat preservation) · EO Gasification and automatics Chemical-add System (Gasified mixture of EO    chemicals,N2,CO2 throughheat exchange) · Automatic Humidifying System (pre-adjust of the humidity) · Pneumatic System and Automatic Door Opening and Closing System · Leftover Air Disposal System (disposing the remained EO air) · Automatic Alarming and Safety Protection System · Dynamic Display of the Sterilizing Process · Display, Control, Record, Print, Preservation and Search of sterilizing data and trend · Groups of Sterilizing Records are automatically recorded · Whole process automatic control by computer 1. Two-level control : industrial control computer and Siemens PLC 2. Automatic door opening an closing (shift type) 3. Automatic control of the sterilizing process 4. Automatic alarming and safety protection Optional Facility Pre-conditioning Room: shorten the pre-heating time Degassing Room: shorten the ETO resolving time Specification: Degassing Tempreture: 20-60â„? PID adjustable Degassing Time: 12-72 hours Cycle and Air Exhaust Time: Arbitrarily Max. Electric heating power: 54KW Max. Steam heating power: 6KW Power source: 3-phase, 4-wire, 380V, 50 Hz Whole process automatic control by computer: Two-level control: industrial control computer and Siemens PLC 1. Degassing whole process automatic control 2. Automatic alarming and automatic safety protection Scrubber includes ETO gathering tank, Acid washing tank, Alkali purifying box, Waste fluid reservoir.

Manufacturing standards: YY0503-2005, EN1422 Techniques and certification standards: GB18279-2000, EN550 Quality Management System: ISO11135-2007, ISO 13485:2003
